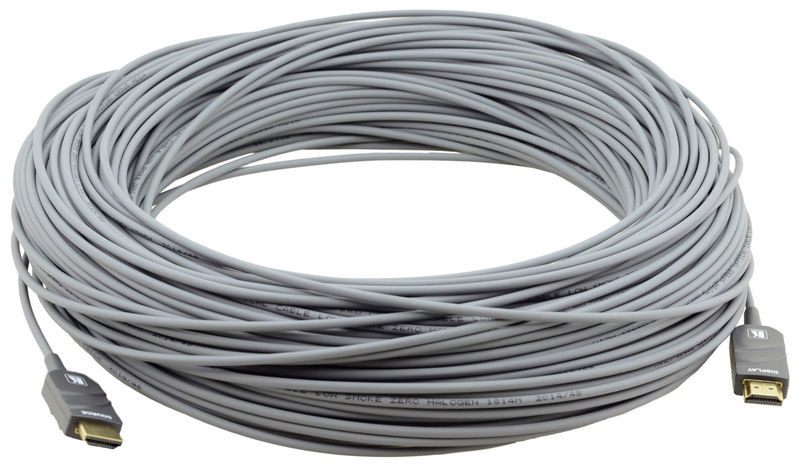

Kramer CLS-AOCH-98 Cable 30m

Active Optical HDMI Cable
- Length: 30 m
- For long cable runs up to 100 metres without the need for an external power supply or additional extenders
- Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz (4:4:4), 8 Bit, Full HD, 3D Deep Color
- Max. data rate: 10.2 Gb/s
- Supported colour spaces: RGB, YCbCr, xvYCC, Adobe sRGB and sYCC601
- Embedded Audio: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio and SA-CD
- HDMI compliance: HDCP 2.2, EDID, CEC
- Connection: 24k Gold-plated HDMI type A
- Cable construction: Hybrid fibre optic cable
- Optical fibre: Multi mode fibre optic
- Conductor: 6x 28AWG (7/0.127 mm)
- Outer sheath: LSHF (low smoke and halogen free)
- Outer sheath colour: Grey
- Outer diameter: 3.4 mm
- Smallest bend radius: 6 mm
- Cable tensile strength: 10 kg
- Max. compression resistance: 500 N
- Operating temperature: 0 to +50 °C
- LSHF compliance: IEC 60332-1, IEC 60754-1, IEC 61034-2, ROHS: 2011/65/EU
Further Information
From Plug | HDMI male |
---|---|
To Plug | HDMI male |
Length (in m) | 30 m |
Cable Color | Grey |
Active Cable | Yes |

Active Optical HDMI Cable Length: 30 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 30 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 50 m, For long cable runs of up to 100 meters without the need for an external power supply or additional extenders, Max. Resolution: 4K @ 60 Hz (4:2:0), 4K @ 30...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 50 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 20 m, For long cable runs of up to 100 meters without the need for an external power supply or additional extenders, Max. Resolution: 4K @ 60 Hz (4:2:0), 4K @ 30...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 20 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 15.2 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 15,2 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 100 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 100 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 10 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 10 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 60 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 60 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 40 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 40 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 70 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 70 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 90 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 90 m
- Cable Color: Grey
- Active Cable: Yes

Active Optical HDMI Cable Length: 80 m, For long cable runs of up to 100 meters without the need for an external power supply or additional extenders, Max. Resolution: 4K @ 60 Hz (4:2:0), 4K @ 30...
- From Plug: HDMI male
- To Plug: HDMI male
- Length (in m): 80 m
- Cable Color: Grey
- Active Cable: Yes

The price in USD is a guideline price only!

This item is in stock and can be dispatched immediately.
Standard Delivery Timessales rank in this product group | 26 |
at thomann.de | 11285 |
item number | 502216 |
sales unit | 1 piece |
available since | September 2020 |
